Fuel Dispenser Hydraulic Components

Compare fuel dispenser pumps, fuel dispenser flow meters, pump filters, emergency shut-off valves and motor-drive parts for the fuel path inside and beneath a dispenser.

12 product series90%+ catalogue coverageProduct imagesMaterials & specificationsConnection variantsTechnical drawings

01 / Control & safety

Supply-line valves

Prime-retaining and emergency isolation devices positioned before the dispenser hydraulic system.

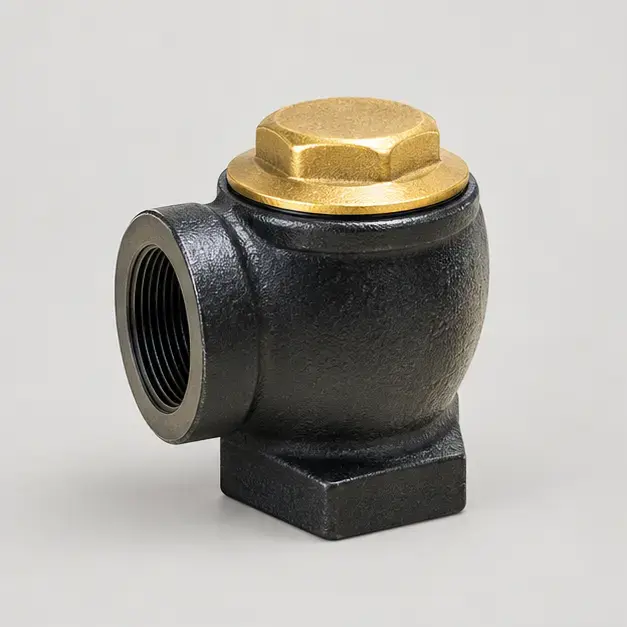

SIMEI DV-100 Series

Angle Check Valve

Spring-loaded inlet valve that maintains suction-line prime.

Description

Installed in top-tank and suction fuel lines to help maintain system prime. A spring-loaded poppet and resilient disc support reliable closure where vibration is present.

BodyCast iron

CapChrome-plated brass

DiscBuna-N

Recommended head34 ft max. (approx. 15 psi)

Height116 / 123 mm

Net weight2.1 kg

SIMEI code	Inlet	Outlet
DV-100-01	NPT 1-1/2	NPT 1-1/2
DV-100-02	NPT 1-1/2	BSP 1-1/2
DV-100-03	BSP 1-1/2	NPT 1-1/2
DV-100-04	BSP 1-1/2	BSP 1-1/2
DV-100-05	NPT 2	NPT 2
DV-100-06	BSPT 2	BSPT 2

Enquire about this modelSIMEI DV-100 Series — Angle Check Valve

The product and model are already included. Add quantity, duty, connection and destination details in your message.

Ask on WhatsApp ↗Email this model ↗

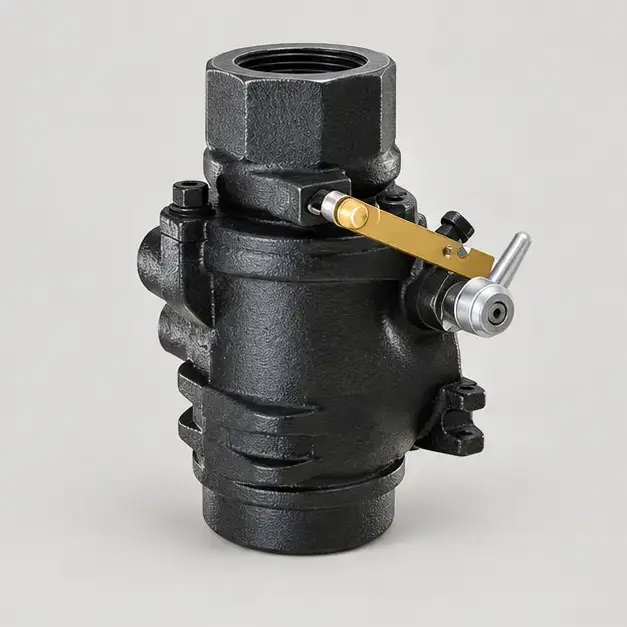

SIMEI EV-100 Series

Emergency Shut-off Valve

Grade-level dispenser isolation with a 75°C fusible link.

Description

Installed beneath the dispenser to stop fuel flow after collision or fire. Single-poppet models isolate the supply; double-poppet models also retain fuel on the dispenser side.

BodyCast iron

SealBuna-N O-ring

Fusible closure75°C

Shear force600–880 N·m

Integral test port3/8 in

Ambient-30°C to +55°C

Compatible mediaGasoline, diesel, kerosene, water

Net weight3 kg

Code range	Inlet family	Outlet options	Poppet
EV-100-01–04	NPT 1-1/2 F	NPT 1-1/2 F / M	Single / double
EV-100-05–08	BSP 1-1/2 F	BSP 1-1/2 F / M	Single / double
EV-100-09–14	NPT 2 M	NPT 1 F / M or 2 M	Single / double
EV-100-15–18	BSP/BSPT 2 M	BSP 1 F / M or BSPT 2 M	Single / double

Enquire about this modelSIMEI EV-100 Series — Emergency Shut-off Valve

The product and model are already included. Add quantity, duty, connection and destination details in your message.

Ask on WhatsApp ↗Email this model ↗

02 / Pumping & metering

Pumps and flow meters

Two self-priming pump platforms and three positive-displacement meter platforms for common dispenser configurations.

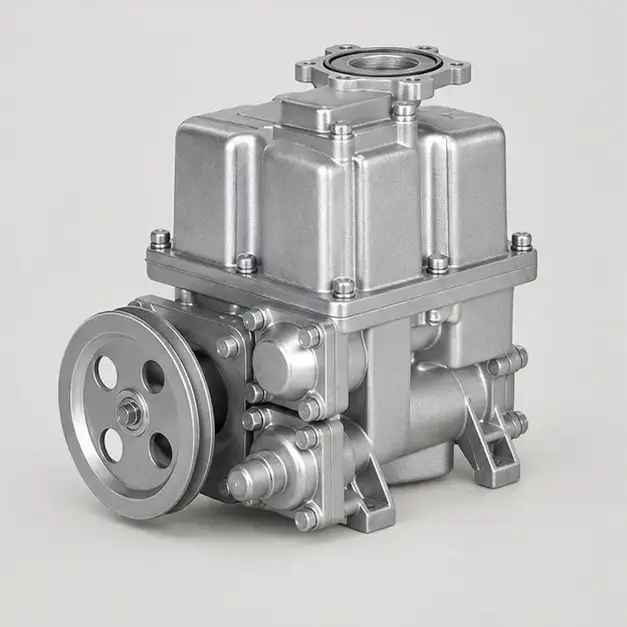

SIMEI DP-100 Series

Type-75 Dispenser Pump

Self-priming internal-gear pump with integrated air separation.

Description

Positive-displacement pump with adjustable bypass, reverse check valve, outlet check/relief valve and reusable inlet strainer. The integrated air separator supports stable dispenser delivery.

Motor750 W

Maximum flow55 L/min

Rotation520 rpm

Noise68 dB(A)

Minimum vacuum0.054 MPa

Pressure drop0.12–0.25 MPa

Factory pressure0.18–0.20 MPa

Air separation≥20%

Body / sealsPainted aluminium / Buna-N

Net weight17 kg

SIMEI code	Configuration	Selection note
DP-100-01	Standard dispenser pump	55 L/min class
DP-100-SP	Service-parts set	Quote by pump serial/configuration

Enquire about this modelSIMEI DP-100 Series — Type-75 Dispenser Pump

The product and model are already included. Add quantity, duty, connection and destination details in your message.

Ask on WhatsApp ↗Email this model ↗

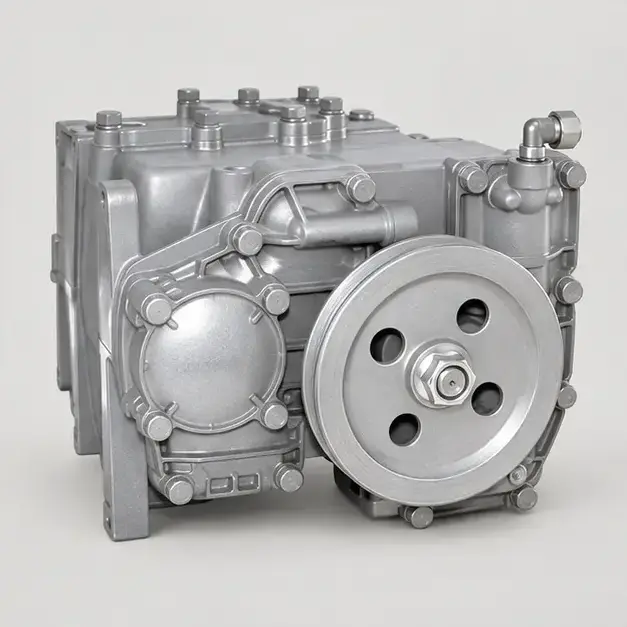

SIMEI DP-110 Series

ZHB-90 Dispenser Pump

Higher-flow dispenser pump with integrated protection functions.

Description

For gasoline, kerosene, diesel and compatible fuels. The assembly combines internal overflow, relief and check valves with air-oil separation plus inlet and outlet filtration.

Flow range45–90 L/min

Speed680–980 rpm

Vacuum≥0.06 MPa

Working pressure0.18–0.30 MPa

Noise≤72 dB

Net weight17 kg

SIMEI code	Flow class	Compatible fuels
DP-110-01	45–90 L/min	Gasoline / kerosene / diesel
DP-110-SP	Service-parts set	Quote by pump configuration

Enquire about this modelSIMEI DP-110 Series — ZHB-90 Dispenser Pump

The product and model are already included. Add quantity, duty, connection and destination details in your message.

Ask on WhatsApp ↗Email this model ↗

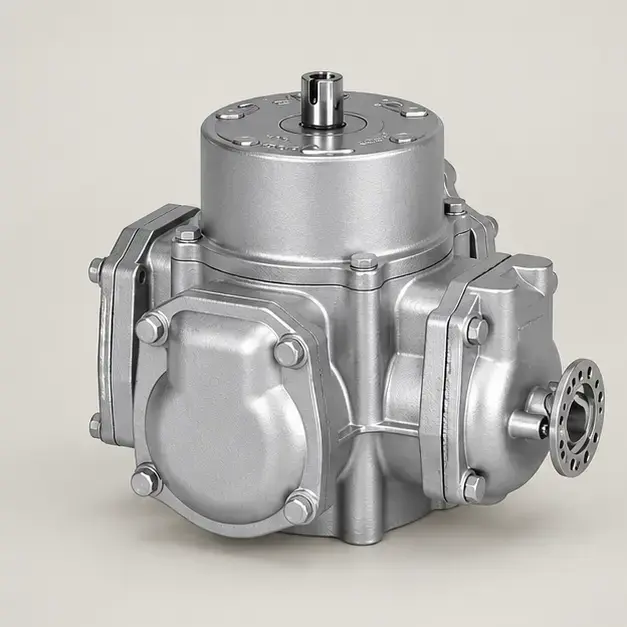

SIMEI FM-100 Series

SB-100 Flow Meter

Four-piston meter with external calibration adjustment.

Description

Four-piston positive-displacement meter with rotary valve, double oil lip seal and external adjustment mechanism. Designed for stable, repeatable retail fuel measurement.

Displacement0.5 L/revolution

Accuracy±0.2%

Repeatability≤±0.1%

Min. adjustment0.05%

Pressure0.12–0.30 MPa

Net weight5.25 kg

BodyPainted aluminium

SealsBuna-N

SIMEI code	Meter type	Calibration
FM-100-01	4-piston positive displacement	External adjustment
FM-100-SP	Service-parts set	Quote by meter configuration

Enquire about this modelSIMEI FM-100 Series — SB-100 Flow Meter

The product and model are already included. Add quantity, duty, connection and destination details in your message.

Ask on WhatsApp ↗Email this model ↗

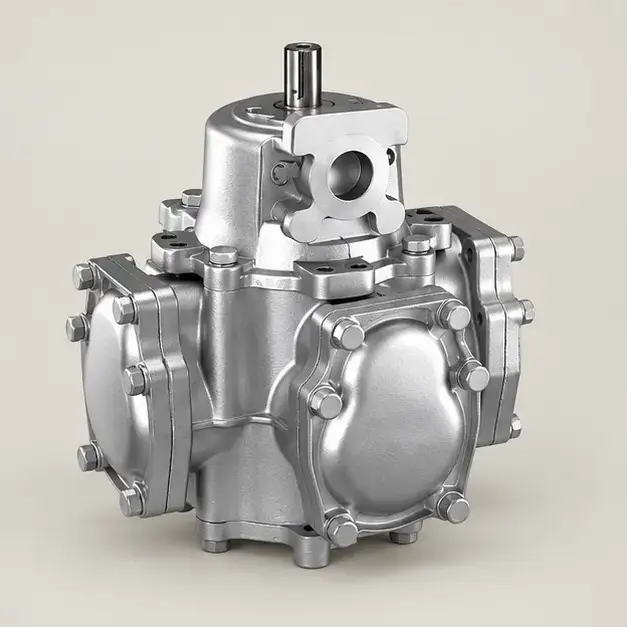

SIMEI FM-110 Series

JL-65 Flow Meter

0.5-litre four-piston meter for 5–90 L/min service.

Description

Four-piston positive-displacement design with an aluminium-alloy body and stainless-steel cylinder bushings for dispenser measurement applications.

Flow range5–90 L/min

Displacement0.5 L/revolution

Accuracy±0.2%

Repeatability±0.1%

Min. adjustment0.025%

Net weight5.5 kg

SIMEI code	Body	Cylinder bushing
FM-110-01	Aluminium alloy	Stainless steel
FM-110-SP	Service-parts set	Quote by meter configuration

Enquire about this modelSIMEI FM-110 Series — JL-65 Flow Meter

The product and model are already included. Add quantity, duty, connection and destination details in your message.

Ask on WhatsApp ↗Email this model ↗

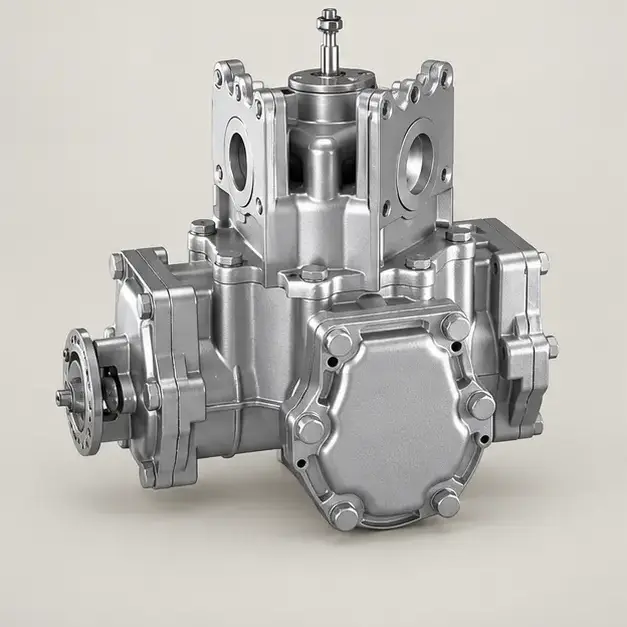

SIMEI FM-120 Series

JL-473 Flow Meter

Compact 0.473-litre meter with top-side discharge port.

Description

Four-piston positive-displacement meter with aluminium-alloy body, stainless cylinder bushings and plastic swivel ball/pin. The discharge port is located above the calibration dial.

Displacement0.473 L/revolution

Accuracy±0.2%

Repeatability±0.1%

Min. adjustment±0.04%

Port positionAbove calibration dial

Net weight6.5 kg

SIMEI code	Meter type	Construction
FM-120-01	4-piston positive displacement	Aluminium / stainless
FM-120-SP	Service-parts set	Quote by meter configuration

Enquire about this modelSIMEI FM-120 Series — JL-473 Flow Meter

The product and model are already included. Add quantity, duty, connection and destination details in your message.

Ask on WhatsApp ↗Email this model ↗

03 / Connection & filtration

Flexible connectors and filters

Components for vibration isolation, threaded interface conversion and removal of particulate contamination.

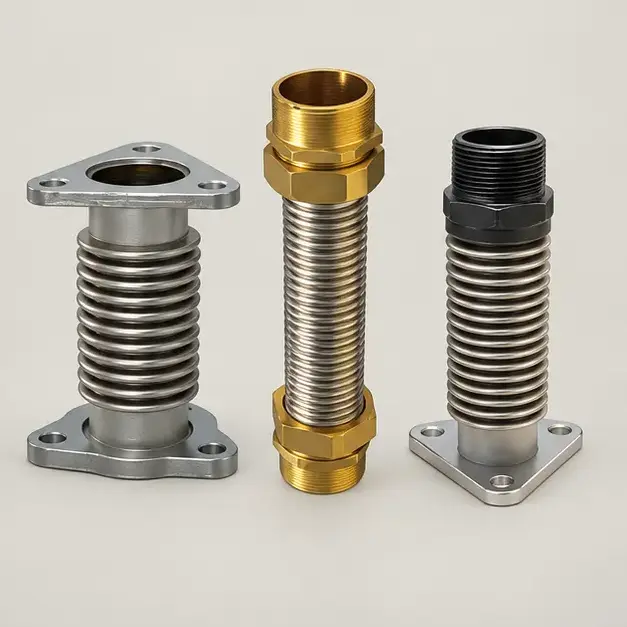

SIMEI FC-100 Series

Flexible Syphon Connector

Stainless flexible connection with flange or threaded ends.

Description

Flexible dispenser connection for absorbing alignment variation and vibration. Stainless pipe and flange construction is combined with a brass coupling and PTFE seal.

Pipe / flangeStainless steel

CouplingBrass

SealPTFE

Working pressure0.25 MPa

Code range	Connection	Lengths
FC-100-01–03	38 mm flange	130 / 160 / 300 mm
FC-100-04–09	1/2 to 2 in threaded	250 mm
FC-100-10–12	38 mm flange × NPT 1-1/2	130 / 160 / 300 mm
FC-100-13–15	38 mm flange × BSPT 1-1/2	130 / 160 / 300 mm

Enquire about this modelSIMEI FC-100 Series — Flexible Syphon Connector

The product and model are already included. Add quantity, duty, connection and destination details in your message.

Ask on WhatsApp ↗Email this model ↗

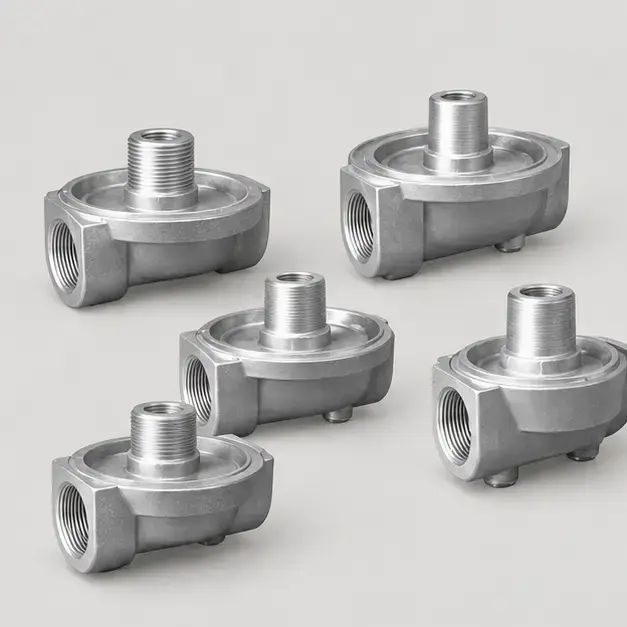

SIMEI FA-100 Series

Filter Adaptors

Aluminium heads for mounting spin-on dispenser filters.

Description

Single-filter aluminium adaptor family for common dispenser pipe sizes and spin-on filter thread standards. Six body configurations cover compact and higher-capacity installations.

ConstructionAluminium

Filter formatSingle spin-on adaptor

Port rangeBSPP 1/2 to 1-1/2

Weight range0.393–1.0 kg

SIMEI code	Pipe port	Filter thread	Weight
FA-100-01	BSPP 3/4	1 in-12 UNF	0.393 kg
FA-100-02	BSPP 1/2	1 in-12 UNF	0.465 kg
FA-100-03	BSPP 1	1 in-12 UNF	0.459 kg
FA-100-04	BSPP 1-1/2	1 in-16 UNF	1.0 kg
FA-100-05	BSPP 3/4	1 in-12 UNF	0.60 kg
FA-100-06	BSPP 3/4	1 in-12 UNF	0.45 kg

Enquire about this modelSIMEI FA-100 Series — Filter Adaptors

The product and model are already included. Add quantity, duty, connection and destination details in your message.

Ask on WhatsApp ↗Email this model ↗

SIMEI PF-100 Series

Spin-on Pump Filter

High-flow particulate filter in 10 or 30 micron ratings.

Description

Spin-on dispenser filter for gasoline, diesel and ethanol or methanol blends up to 10%. Removes dirt, dust and rust; supplied with pre-lubricated gaskets.

Maximum flow25 gpm / 94.6 L/min

Maximum pressure3.0 bar

Micron options10 / 30 micron

Net weight0.57 kg

Fuel compatibilityGasoline / diesel

Alcohol blendUp to 10%

SIMEI code	Rating	Application
PF-100-10	10 micron	Fine particulate filtration
PF-100-30	30 micron	General particulate filtration

Enquire about this modelSIMEI PF-100 Series — Spin-on Pump Filter

The product and model are already included. Add quantity, duty, connection and destination details in your message.

Ask on WhatsApp ↗Email this model ↗

04 / Drive

Explosion-proof motors

Steel-body and aluminium-body drive options organised by voltage, output and operating speed.

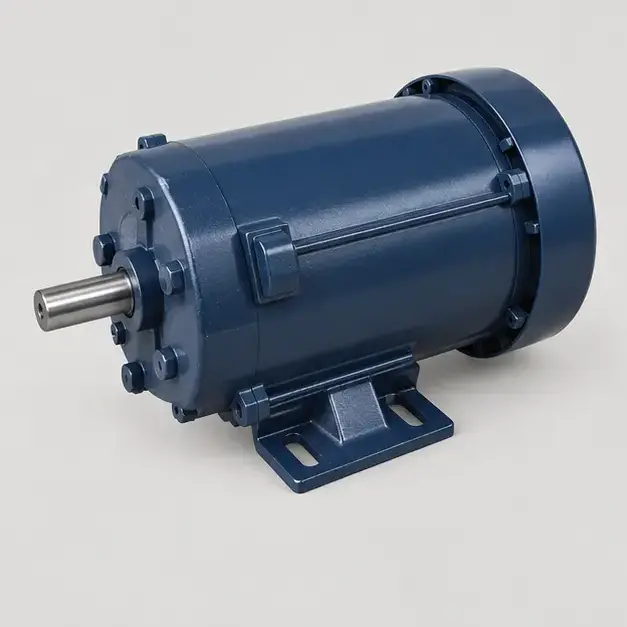

SIMEI EM-S100 Series

Steel-Body Explosion-Proof Motor

Heavy-duty 220 V and 380 V dispenser motor family.

Description

Steel-body explosion-proof motor range for dispenser pump drive applications. Selection should match supply voltage, pump load, rotation requirement and mounting dimensions.

Voltages220 / 380 V

Frequency50 / 60 Hz

Output range0.55–1.50 kW

Speed class1400–1725 rpm

Approx. length296–390 mm

ConstructionSteel body

Code	Voltage	Output	Current	Speed 50/60 Hz
EM-S100-01	220 V	0.55 kW / 3/4 HP	4.0 A	1425 / 1725 rpm
EM-S100-02	220 V	0.75 kW / 1 HP	5.1 A	1425 / 1725 rpm
EM-S100-03	220 V	1.10 kW / 1.5 HP	6.5 A	1425 / 1725 rpm
EM-S100-04	380 V	0.55 kW / 3/4 HP	1.5 A	1400 / 1700 rpm
EM-S100-05	380 V	0.75 kW / 1 HP	2.0 A	1400 / 1700 rpm
EM-S100-06	380 V	1.10 kW / 1.5 HP	2.8 A	1400 / 1700 rpm
EM-S100-07	380 V	1.50 kW / 2 HP	3.8 A	1400 / 1700 rpm

Enquire about this modelSIMEI EM-S100 Series — Steel-Body Explosion-Proof Motor

The product and model are already included. Add quantity, duty, connection and destination details in your message.

Ask on WhatsApp ↗Email this model ↗

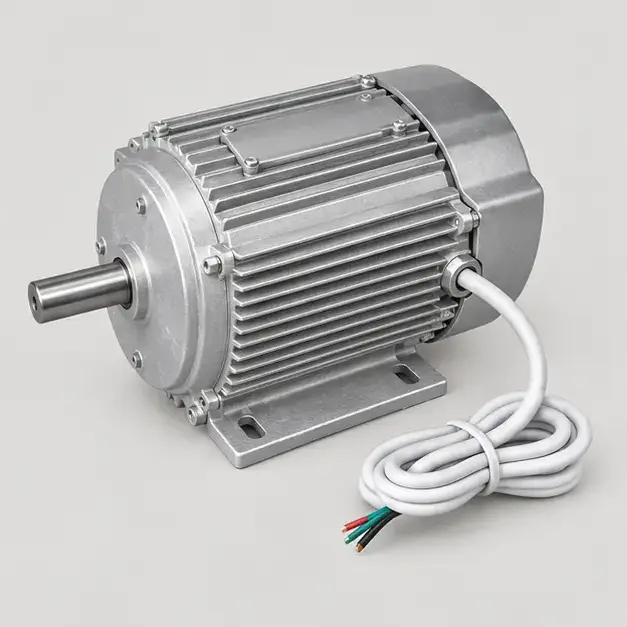

SIMEI EM-A100 Series

Aluminium-Body Explosion-Proof Motor

Lightweight high- and low-speed dispenser motor options.

Description

Ribbed aluminium-body explosion-proof motor family for 380 V dispenser systems. Both two-pole and four-pole speed classes are available.

Voltage380 V

Frequency50 / 60 Hz

Output range0.55–1.10 kW

Speed classes1390–3430 rpm

Length295 / 315 mm

ConstructionRibbed aluminium body

Code	Output	Current	Speed 50/60 Hz
EM-A100-01	0.75 kW / 1 HP	1.8 A	2800 / 3430 rpm
EM-A100-02	1.10 kW / 1.5 HP	2.5 A	2800 / 3430 rpm
EM-A100-03	0.55 kW / 3/4 HP	1.6 A	1390 / 1690 rpm
EM-A100-04	0.75 kW / 1 HP	2.0 A	1390 / 1690 rpm
EM-A100-05	1.00 kW / 1.5 HP	2.6 A	1390 / 1690 rpm
EM-A100-06	1.10 kW / 1.5 HP	2.8 A	1390 / 1690 rpm

Enquire about this modelSIMEI EM-A100 Series — Aluminium-Body Explosion-Proof Motor

The product and model are already included. Add quantity, duty, connection and destination details in your message.

Ask on WhatsApp ↗Email this model ↗

Technical selection

Send the dispenser model, duty and interfaces.

We will confirm the SIMEI component series, thread or flange connection, flow range, voltage and compatible service-parts configuration.
