Fuel Station Canopy Lights & Forecourt Lighting

Compare metal-halide canopy lights and forecourt luminaires for fuel stations, gas station lighting, parking garages, storage areas and vehicle wash bays.

1 luminaire series3 power models100% source-page coverageConstruction detailsPhotometric curvePackaging data

01 / Canopy lighting

High-visibility forecourt luminaires

A rugged, serviceable lighting family for fuel-station canopies, parking garages, storage areas, warehouses and car-wash bays.

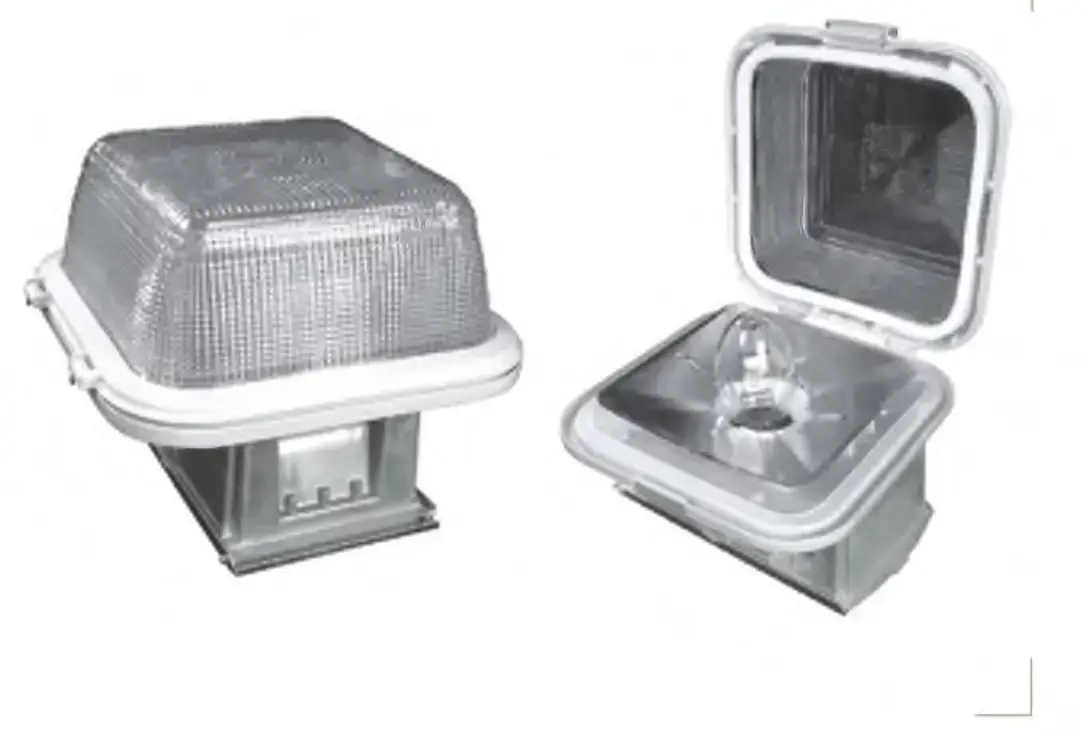

SIMEI FCL-100 Series

Metal-Halide Canopy Luminaire

Cast-aluminium fixture with prismatic glass refractor, tool-free access and 250 W, 320 W or 400 W configurations.

Application and construction

Designed for canopy and area illumination where wide, uniform light distribution and convenient ground-level maintenance are required. The fixture supports recessed or surface-mounted arrangements subject to the final canopy design.

Working temperature-30°C to +40°C

Supply options120 / 220 / 240 V, 50/60 Hz

Lamp power250 / 320 / 400 W

Colour temperature4,000 K

HousingCast aluminium

RefractorBorosilicate prismatic glass

Base net weight4.55 kg

Glass-cover net weight7.4 kg

Features

Rigid cast-aluminium body for long service life.
Spring-loaded touch latch provides tool-free entry for maintenance and lamp replacement.
Heat-resistant prismatic glass refractor distributes light evenly and improves visual comfort.
Heavy-duty die-cast aluminium door and glare shield protect the optical assembly.
Hydroformed aluminium reflector supports efficient, uniform light distribution.
Quick-connect internal wiring simplifies installation and service.
Silicone gasket seals the optical assembly against the environment.
Ballast box isolates heat from the lamp and protects internal components.

SIMEI code	Lamp power	Rated voltage	Colour temperature	Selection note
FCL-100-250	250 W	220 V ±5%	4,000 K	Lower-power canopy areas
FCL-100-320	320 W	220 V ±5%	4,000 K	Intermediate illumination duty
FCL-100-400	400 W	220 V ±5%	4,000 K	Higher-output forecourt duty

Packaging: base: 35.5 × 20.5 × 15.5 cm, 4.9 kg gross; glass cover: 40 × 37 × 21 cm, 8.2 kg gross. One piece per case. Final mounting method, electrical supply and illumination level should be confirmed against the canopy layout and local electrical requirements.

Enquire about this modelSIMEI FCL-100 Series — Metal-Halide Canopy Luminaire

The product and model are already included. Add quantity, duty, connection and destination details in your message.

Ask on WhatsApp ↗Email this model ↗

Lighting selection

Send the canopy plan, mounting height and target illumination.

We will confirm the suitable SIMEI power model, supply voltage, mounting arrangement and required quantity.
