CangZhou Simei EnergyFuel Station Equipment / Family 01
Compare automatic fuel dispenser nozzles, petrol pump nozzles, diesel fuel nozzles, manual and high-flow models for retail stations, fleets and bulk fuel transfer.
01 / Automatic
Four automatic shut-off series for conventional forecourt, prepaid, card-lock and high-flow dispensing systems.
Compact automatic shut-off for gasoline, diesel and kerosene.
Low-profile aluminium nozzle with automatic shut-off, replaceable spout, optional hold-open rack, full-hand insulation and back-sealing vacuum design.
| SIMEI code | Inlet / option | Spout | Performance / form |
|---|---|---|---|
| FN-A100-01 | BSP/NPT 3/4 | 15/16 in | 60 L/min |
| FN-A100-02 | BSP/NPT 3/4 | 13/16 in | 45 L/min |
The product and model are already included. Add quantity, duty, connection and destination details in your message.
Opens after system pressurisation and closes when pressure is removed.
For self-service prepay and card-lock systems. The pressure-detecting module keeps the main valve closed without sufficient hose pressure.
| SIMEI code | Inlet / option | Spout | Performance / form |
|---|---|---|---|
| FN-A110-01 | NPT/BSP 3/4 | 15/16 in | 60 L/min |
| FN-A110-02 | NPT/BSP 3/4 | 13/16 in | 45 L/min |
The product and model are already included. Add quantity, duty, connection and destination details in your message.
Heavy-duty automatic series for truck, bus and fleet refuelling.
Dual poppet valves, smooth spray pattern, three-position hold-open device and replaceable spout help reduce foaming and false shut-offs.
| SIMEI code | Inlet / option | Spout | Performance / form |
|---|---|---|---|
| FN-A200-01 | NPT/BSP 1 | 1-3/16 in | 120 L/min |
| FN-A200-02 | NPT/BSP 1 | 1 in | 90 L/min |
The product and model are already included. Add quantity, duty, connection and destination details in your message.
High-flow automatic model with pressure-detection safety control.
Combines high-flow fleet performance with a pressure-detecting module. Dual poppets ease opening against inlet pressure.
| SIMEI code | Inlet / option | Spout | Performance / form |
|---|---|---|---|
| FN-A210-01 | NPT/BSP 1 | 1-3/16 in | 120 L/min |
| FN-A210-02 | NPT/BSP 1 | 1 in | 90 L/min |
The product and model are already included. Add quantity, duty, connection and destination details in your message.
02 / Automatic
Four additional automatic series covering one-inch station service, integrated swivels, long-spout high flow and right-angle delivery.
Dual-poppet automatic nozzle with concealed hold-open mechanism.
One-inch inlet series for gasoline, diesel and kerosene. The low-profile die-cast body and dual poppet valve support accurate flow control.
| SIMEI code | Inlet / option | Spout | Performance / form |
|---|---|---|---|
| FN-A120-01 | NPT/BSP 1 | 13/16 in | 45 L/min |
| FN-A120-02 | NPT/BSP 1 | 15/16 in | 60 L/min |
The product and model are already included. Add quantity, duty, connection and destination details in your message.
Long-spout automatic family with 360° inlet swivel.
Compound main valve, flow-lock spout, full-hand insulator and replaceable 360° swivel. PA66 or aluminium lever guards are available.
| SIMEI code | Inlet / option | Spout | Performance / form |
|---|---|---|---|
| FN-A130-01 | NPT/BSP 3/4 or 1 | 15/16 in | PA66 |
| FN-A130-02 | NPT/BSP 3/4 or 1 | 13/16 in | PA66 |
| FN-A130-03 | NPT/BSP 3/4 or 1 | 15/16 in | Aluminium |
| FN-A130-04 | NPT/BSP 3/4 or 1 | 13/16 in | Aluminium |
The product and model are already included. Add quantity, duty, connection and destination details in your message.
High-flow family with six inlet styles and two guard materials.
For heavy-duty truck, bus and fleet service, with compound main valve, flow-lock protection, 360° swivel and hold-open control.
| SIMEI code | Inlet / option | Spout | Performance / form |
|---|---|---|---|
| FN-A220-01–02 | NPT 1 male / female | 1-3/16 in | PA66 |
| FN-A220-03–04 | BSPT 1 male / female | 1-3/16 in | PA66 |
| FN-A220-05–06 | BSPP 1 male / female | 1-3/16 in | PA66 |
| FN-A220-07–12 | NPT/BSPT/BSPP 1 | 1-3/16 in | Aluminium |
The product and model are already included. Add quantity, duty, connection and destination details in your message.

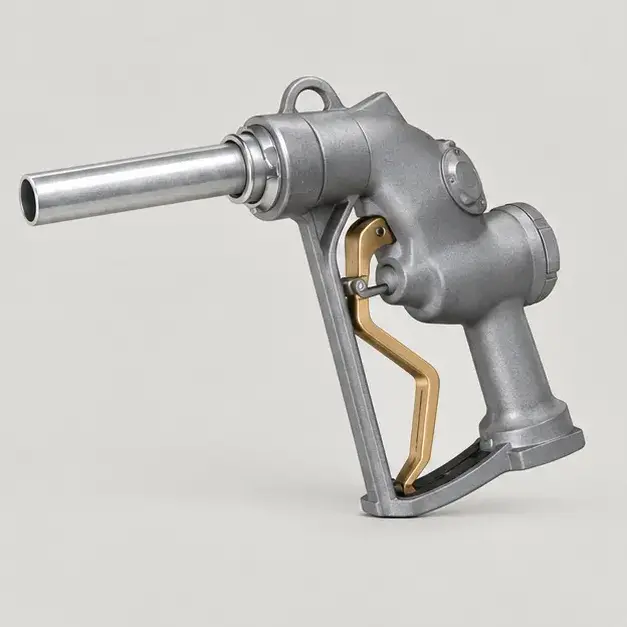

Large automatic shut-off nozzle for confined delivery points.
Heavy-duty right-angle cast-aluminium body provides a larger lever area close to walls and corners; dual poppets support higher inlet pressure.
| SIMEI code | Inlet / option | Spout | Performance / form |
|---|---|---|---|
| FN-A230-01 | NPT 1-1/2 | 38 mm | Bulk delivery |
| FN-A230-02 | BSPT 1-1/2 | 38 mm | Bulk delivery |
The product and model are already included. Add quantity, duty, connection and destination details in your message.
03 / Manual
Four attended-operation series for gravity feed, low-pressure utility fuelling and bulk fuel-oil delivery.
Lightweight manual nozzle for gravity or low-pressure fuelling.
Cast-aluminium body with compound lever. Two fulcrum points allow gradual opening for topping off and rapid transition to full flow.
| SIMEI code | Inlet / option | Spout | Performance / form |
|---|---|---|---|
| FN-M100-01–02 | NPT 1 | 15/16 or 13/16 in | 45/60 L/min |
| FN-M100-03–04 | NPT 3/4 | 15/16 or 13/16 in | 45/60 L/min |
| FN-M100-05–06 | BSPP 1 | 15/16 or 13/16 in | 45/60 L/min |
| FN-M100-07–08 | BSPP 3/4 | 15/16 or 13/16 in | 45/60 L/min |
The product and model are already included. Add quantity, duty, connection and destination details in your message.
Manual utility series with 360° inlet swivel.
For gravity and low-pressure service. The rotary inlet reduces hose twist, while the compound lever supports accurate topping off.
| SIMEI code | Inlet / option | Spout | Performance / form |
|---|---|---|---|
| FN-M110-01–02 | NPT 1 | 13/16 or 1 in | 45/70 L/min |
| FN-M110-03–04 | BSPT 1 | 13/16 or 1 in | 45/70 L/min |
| FN-M110-05–06 | NPT 3/4 | 13/16 or 1 in | 45/70 L/min |
| FN-M110-07–08 | BSPP 3/4 | 13/16 or 1 in | 45/70 L/min |
The product and model are already included. Add quantity, duty, connection and destination details in your message.
Large-bore attended nozzle for bulk fuel-oil delivery.
High-flow cast-aluminium nozzle with replaceable hold-open rack. The nozzle must remain attended whenever in use.
| SIMEI code | Inlet / option | Spout | Performance / form |
|---|---|---|---|
| FN-M200-01 | BSPP 1-1/2 | 1-5/8 in | 260 L/min |
| FN-M200-02 | NPT 1-1/2 | 1-5/8 in | 260 L/min |
The product and model are already included. Add quantity, duty, connection and destination details in your message.
High-capacity nozzle with replaceable guard and swivel.
Bulk-delivery nozzle with brass stem, replaceable hold-open rack, replaceable lever guard and interchangeable inlet swivel. Attended use only.
| SIMEI code | Inlet / option | Spout | Performance / form |
|---|---|---|---|
| FN-M210-01–02 | NPT 1-1/2 or 2 | High-flow spout | 290 L/min |
| FN-M210-03–04 | BSPT 1-1/2 or 2 | High-flow spout | 290 L/min |
| FN-M210-05–06 | BSPP 1-1/2 or 2 | High-flow spout | 290 L/min |
The product and model are already included. Add quantity, duty, connection and destination details in your message.
04 / Vapour recovery
Automatic safety shut-off nozzle for active vapour-recovery dispensers and coaxial hose systems.
Stage II petrol nozzle with three vapour-valve configurations.
For active vapour-recovery dispensers. Automatic shut-off includes tilt and fall protection, with optional pressure-controlled safety shut-off. Not for water, alcohols, solvents, viscous oils or diesel.
| SIMEI code | Inlet / option | Spout | Performance / form |
|---|---|---|---|
| VRN-200-A1 / A2 | M34×1.5 F | 13/16 in | Proportional valve |
| VRN-200-B1 / B2 | M34×1.5 F | 13/16 in | No vapour valve |
| VRN-200-C1 / C2 | M34×1.5 F | 13/16 in | On/off valve |
The product and model are already included. Add quantity, duty, connection and destination details in your message.
05 / Service parts
Service parts stay on this page rather than becoming separate product pages. Final compatibility is confirmed against the SIMEI nozzle code.

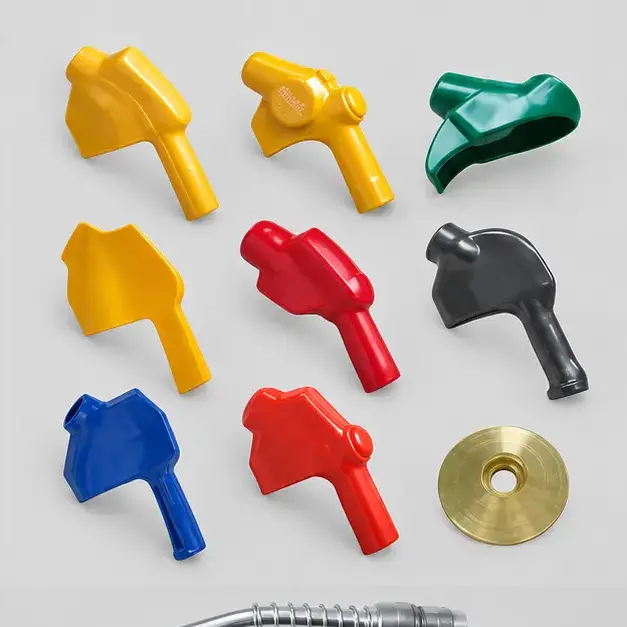

NP-I100-01 to -09 cover standard, pressure-sensitive, one-inch, high-flow and swivel-nozzle body forms. NP-G100-01 is the cold-resistant splash guard for compatible FN-A100, FN-A110 and FN-A130 configurations. Colour is selected with the order; final fit is confirmed by SIMEI nozzle series or body sample.
NP-D100-01 FN-A100/FN-A200; -02 compact legacy body; -03 FN-A130; -04 FN-A120; -05 FN-A230; -06 FN-A110/FN-A210. Compatibility is checked before quotation.

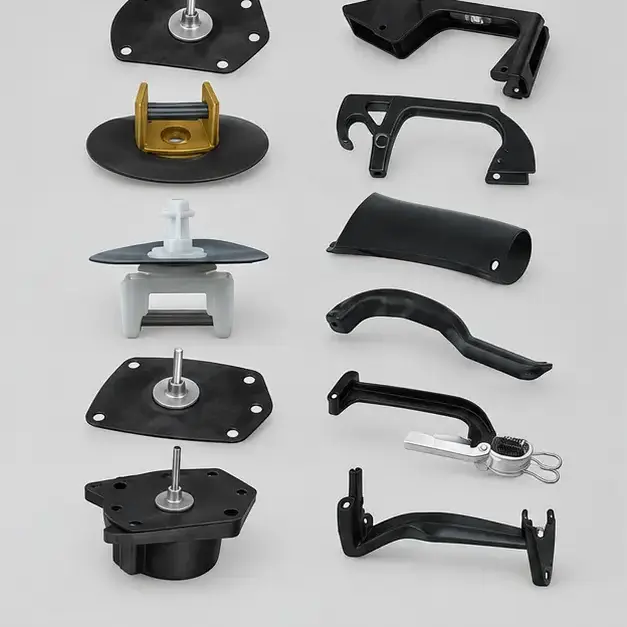

NP-L100-01 guard for FN-A100/A110/A200/A210; -02/-03 guard and handle options for FN-A130; -04 special-body guard; -05 lever for FN-A100/A110/A200/A210; -06 lever for FN-A130.

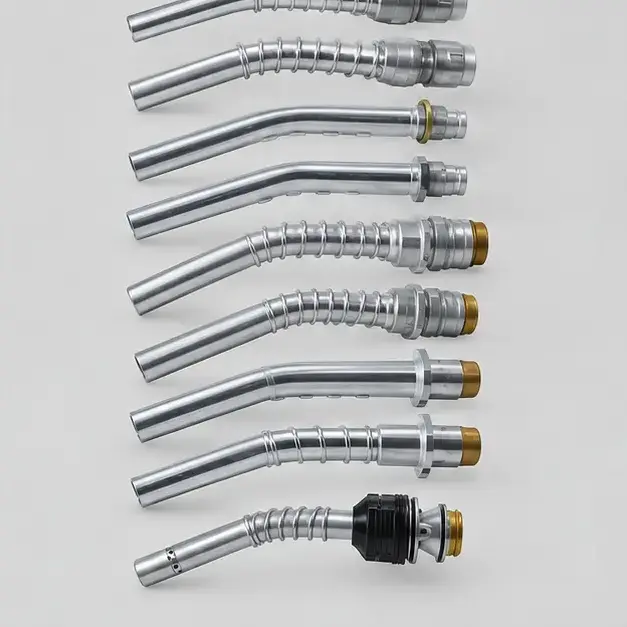

-01/-02 13/16 and 15/16 in for FN-A100/A110; -03/-04 13/16 and 15/16 in for FN-A130; -05/-06/-07 13/16, 15/16 and 1 in for FN-A120; -08/-09 1 and 1-3/16 in for FN-A200/A210; -10 13/16 in special-body spout. Net weight by group: 0.18-0.40 kg; 50 or 100 pieces per case.
Technical selection
We will confirm the suitable SIMEI nozzle series, spout, seal, colour and service parts.
