Product catalogue / 06

Pneumatic & Mechanical Tanker Controls

Control of tanker compartment valves and safety interlocks. Select the circuit count, air supply and mechanical travel for the installed system.

24 traceable product codes

Product models and configurations

SIMEI FT-MC-100

Air preparation and water-vapour separator

Installed ahead of a pneumatic pipeline to prepare the air supply, add lubricant and regulate air pressure.

Technical details

Main features

Air is treated in the separator before entering the pipeline.
Atomized lubricant is added to lubricate downstream parts.
Integral regulating valve adjusts air pressure.

Technical & Ordering Data

Connection	In-line pneumatic supply
Pressure range / port size	Confirm before quotation
Bowl / body material	Confirm before quotation

Confirm Before Order

Confirm filtration rating, lubricant specification and compatible air supply.

Engineering Note

Confirm mating details and application suitability before ordering.

WhatsApp enquiry Email enquiry

SIMEI FT-MC-110

Automatic-return pneumatic interlock valve

Interlocks tanker pneumatic valves through a vapour adaptor valve installation.

Technical details

Main features

The family uses a two-way structure.
The source describes automatic return to the original position when the pressed actuator is released.

Technical & Ordering Data

Operation	Mechanically actuated pneumatic interlock
Port size / air pressure	Confirm before quotation
Body / seal materials	Confirm before quotation

Confirm Before Order

Confirm mounting geometry, valve circuit and return action for this form.

Engineering Note

Confirm mating details and application suitability before ordering.

WhatsApp enquiry Email enquiry

SIMEI FT-MC-120

Automatic-return pneumatic interlock valve

Interlocks tanker pneumatic valves through a vapour adaptor valve installation.

Technical details

Main features

The family uses a two-way structure.
The source describes automatic return to the original position when the pressed actuator is released.

Technical & Ordering Data

Operation	Mechanically actuated pneumatic interlock
Port size / air pressure	Confirm before quotation
Body / seal materials	Confirm before quotation

Confirm Before Order

Confirm mounting geometry, valve circuit and return action for this form.

Engineering Note

Confirm mating details and application suitability before ordering.

WhatsApp enquiry Email enquiry

SIMEI FT-MC-130

Pneumatic interlock valve

Interlocks tanker pneumatic valves through a vapour adaptor valve installation.

Technical details

Main features

The family uses a two-way structure.
The source describes automatic return to the original position when the pressed actuator is released.

Technical & Ordering Data

Operation	Mechanically actuated pneumatic interlock
Port size / air pressure	Confirm before quotation
Body / seal materials	Confirm before quotation

Confirm Before Order

Confirm mounting geometry, valve circuit and return action for this form.

Engineering Note

Family operating text accompanies the two upper forms; applicability to this lower pictured form requires confirmation.

WhatsApp enquiry Email enquiry

SIMEI FT-MC-140

Pneumatic interlock valve

Interlocks tanker pneumatic valves through a vapour adaptor valve installation.

Technical details

Main features

The family uses a two-way structure.
The source describes automatic return to the original position when the pressed actuator is released.

Technical & Ordering Data

Operation	Mechanically actuated pneumatic interlock
Port size / air pressure	Confirm before quotation
Body / seal materials	Confirm before quotation

Confirm Before Order

Confirm mounting geometry, valve circuit and return action for this form.

Engineering Note

Family operating text accompanies the two upper forms; applicability to this lower pictured form requires confirmation.

WhatsApp enquiry Email enquiry

SIMEI FT-MC-150

Pneumatic interlock valve

Interlocks tanker pneumatic valves through a vapour adaptor valve installation.

Technical details

Main features

The family uses a two-way structure.
The source describes automatic return to the original position when the pressed actuator is released.

Technical & Ordering Data

Operation	Mechanically actuated pneumatic interlock
Port size / air pressure	Confirm before quotation
Body / seal materials	Confirm before quotation

Confirm Before Order

Confirm mounting geometry, valve circuit and return action for this form.

Engineering Note

Family operating text accompanies the two upper forms; applicability to this lower pictured form requires confirmation.

WhatsApp enquiry Email enquiry

SIMEI FT-MC-160

Lever mechanical control handle

Mechanical handle for tanker cable control.

Technical details

Main features

Technical & Ordering Data

Operation	Lever
Drawing overall height	247 mm
Drawing lower height reference	118 mm; confirm referenced feature
Drawing reference	Original side drawing supplied; mounting-hole and other small dimension labels require verification
Material / cable travel	Confirm before quotation

Dimensions & Construction (1)

Drawings are selection references. Confirm dimensions, tolerances and interfaces against the approved drawing before manufacture.

Lever mechanical control handle — Lever handle installation reference — Lever handle installation reference

Confirm Before Order

Confirm cable end, mounting-hole dimensions and travel.

Engineering Note

Confirm mating details and application suitability before ordering.

WhatsApp enquiry Email enquiry

SIMEI FT-MC-170

T-handle mechanical controller

Mechanical T-handle for tanker cable control.

Technical details

Main features

Technical & Ordering Data

Operation	T-handle
Drawing height	150 mm
Drawing mounting holes	2 × Ø5 mm
Drawing cross dimension	Ø69 mm; confirm the referenced feature
Material / cable travel	Confirm before quotation

Dimensions & Construction (1)

Drawings are selection references. Confirm dimensions, tolerances and interfaces against the approved drawing before manufacture.

T-handle mechanical controller — T-handle dimensional reference — T-handle dimensional reference

Confirm Before Order

Confirm mounting geometry and cable end.

Engineering Note

Confirm mating details and application suitability before ordering.

WhatsApp enquiry Email enquiry

SIMEI FT-MC-180

Mechanical discharge cable

Steel cable for tanker mechanical discharge control.

Technical details

Main features

Technical & Ordering Data

Cable material	Steel
Cable diameter	3 mm
Standard length	14 m
Length option	Made to the required length

Confirm Before Order

Confirm termination fittings and installation route.

Engineering Note

Confirm mating details and application suitability before ordering.

WhatsApp enquiry Email enquiry

SIMEI FT-MC-190

Discharge cable controller

Cable controller for remote tanker discharge operation.

Technical details

Main features

Technical & Ordering Data

Cable length	2500 mm
Head dimension	65 mm
Pulling / pushing force	Pull 3000 N / push 60 N
Material / stroke	Confirm before quotation

Confirm Before Order

Confirm the appropriate end fittings and stroke.

Engineering Note

The source groups three models under two photographed controller arrangements; this shared image cannot identify the specific variant.

WhatsApp enquiry Email enquiry

SIMEI FT-MC-200

Discharge cable controller

Cable controller for remote tanker discharge operation.

Technical details

Main features

Technical & Ordering Data

Cable length	2100 mm
Head dimension	120 mm
Pulling / pushing force	Pull 3000 N / push 400 N
Material / stroke	Confirm before quotation

Confirm Before Order

Confirm the appropriate end fittings and stroke.

Engineering Note

The source groups three models under two photographed controller arrangements; this shared image cannot identify the specific variant.

WhatsApp enquiry Email enquiry

SIMEI FT-MC-210

Discharge cable controller

Cable controller for remote tanker discharge operation.

Technical details

Main features

Technical & Ordering Data

Cable length	2000 mm
Head dimension	65 mm
Pulling / pushing force	Pull 2000 N; push force not stated
Material / stroke	Confirm before quotation

Confirm Before Order

Confirm the appropriate end fittings and stroke.

Engineering Note

The source groups three models under two photographed controller arrangements; this shared image cannot identify the specific variant.

WhatsApp enquiry Email enquiry

SIMEI FT-MC-220

1-handle mechanical control block

Remote mechanical control of tanker valves, with one control handle for each mechanical valve.

Technical details

Main features

Can connect to a remote mechanical handle for emergency operation.
The handle locks automatically in its operating position.
A fusible element returns open handles to the closed position above 75 °C.
Handle quantity is selected to suit the application.

Available Configurations

Source table offers 1–8 handles with installation L = 112 / 144 / 176 / 208 / 240 / 272 / 304 / 336 mm respectively.

Technical & Ordering Data

Number of handles	1
Installation size L	112 mm
Head dimension in table	75 mm
Side drawing mounting spacing	180 mm
Side drawing height reference	90 mm
Fusible closing temperature	Above 75 °C
Body / cable material	Confirm before quotation

1-handle mechanical control block — Illustrated mechanical control-block variants — Illustrated mechanical control-block variants

1-handle mechanical control block — Fusible return mechanism detail — Fusible return mechanism detail

Dimensions & Construction (1)

Drawings are selection references. Confirm dimensions, tolerances and interfaces against the approved drawing before manufacture.

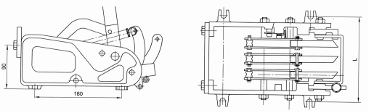

1-handle mechanical control block — Mechanical control-block installation reference — Mechanical control-block installation reference

Confirm Before Order

Confirm the table’s “head” dimension and mounting dimensions before manufacture.
Confirm required cable travel, return force and compatible mechanical valve.

Engineering Note

The same source family photograph illustrates multiple handle quantities; the supplied configuration is defined by the handle count and installation dimension.

WhatsApp enquiry Email enquiry

SIMEI FT-MC-230

2-handle mechanical control block

Remote mechanical control of tanker valves, with one control handle for each mechanical valve.

Technical details

Main features

Can connect to a remote mechanical handle for emergency operation.
The handle locks automatically in its operating position.
A fusible element returns open handles to the closed position above 75 °C.
Handle quantity is selected to suit the application.

Available Configurations

Source table offers 1–8 handles with installation L = 112 / 144 / 176 / 208 / 240 / 272 / 304 / 336 mm respectively.

Technical & Ordering Data

Number of handles	2
Installation size L	144 mm
Head dimension in table	75 mm
Side drawing mounting spacing	180 mm
Side drawing height reference	90 mm
Fusible closing temperature	Above 75 °C
Body / cable material	Confirm before quotation

2-handle mechanical control block — Illustrated mechanical control-block variants — Illustrated mechanical control-block variants

2-handle mechanical control block — Fusible return mechanism detail — Fusible return mechanism detail

Dimensions & Construction (1)

Drawings are selection references. Confirm dimensions, tolerances and interfaces against the approved drawing before manufacture.

2-handle mechanical control block — Mechanical control-block installation reference — Mechanical control-block installation reference

Confirm Before Order

Confirm the table’s “head” dimension and mounting dimensions before manufacture.
Confirm required cable travel, return force and compatible mechanical valve.

Engineering Note

The same source family photograph illustrates multiple handle quantities; the supplied configuration is defined by the handle count and installation dimension.

WhatsApp enquiry Email enquiry

SIMEI FT-MC-240

3-handle mechanical control block

Remote mechanical control of tanker valves, with one control handle for each mechanical valve.

Technical details

Main features

Can connect to a remote mechanical handle for emergency operation.
The handle locks automatically in its operating position.
A fusible element returns open handles to the closed position above 75 °C.
Handle quantity is selected to suit the application.

Available Configurations

Source table offers 1–8 handles with installation L = 112 / 144 / 176 / 208 / 240 / 272 / 304 / 336 mm respectively.

Technical & Ordering Data

Number of handles	3
Installation size L	176 mm
Head dimension in table	75 mm
Side drawing mounting spacing	180 mm
Side drawing height reference	90 mm
Fusible closing temperature	Above 75 °C
Body / cable material	Confirm before quotation

3-handle mechanical control block — Illustrated mechanical control-block variants — Illustrated mechanical control-block variants

3-handle mechanical control block — Fusible return mechanism detail — Fusible return mechanism detail

Dimensions & Construction (1)

Drawings are selection references. Confirm dimensions, tolerances and interfaces against the approved drawing before manufacture.

3-handle mechanical control block — Mechanical control-block installation reference — Mechanical control-block installation reference

Confirm Before Order

Confirm the table’s “head” dimension and mounting dimensions before manufacture.
Confirm required cable travel, return force and compatible mechanical valve.

Engineering Note

The same source family photograph illustrates multiple handle quantities; the supplied configuration is defined by the handle count and installation dimension.

WhatsApp enquiry Email enquiry

SIMEI FT-MC-250

4-handle mechanical control block

Remote mechanical control of tanker valves, with one control handle for each mechanical valve.

Technical details

Main features

Can connect to a remote mechanical handle for emergency operation.
The handle locks automatically in its operating position.
A fusible element returns open handles to the closed position above 75 °C.
Handle quantity is selected to suit the application.

Available Configurations

Source table offers 1–8 handles with installation L = 112 / 144 / 176 / 208 / 240 / 272 / 304 / 336 mm respectively.

Technical & Ordering Data

Number of handles	4
Installation size L	208 mm
Head dimension in table	75 mm
Side drawing mounting spacing	180 mm
Side drawing height reference	90 mm
Fusible closing temperature	Above 75 °C
Body / cable material	Confirm before quotation

4-handle mechanical control block — Illustrated mechanical control-block variants — Illustrated mechanical control-block variants

4-handle mechanical control block — Fusible return mechanism detail — Fusible return mechanism detail

Dimensions & Construction (1)

Drawings are selection references. Confirm dimensions, tolerances and interfaces against the approved drawing before manufacture.

4-handle mechanical control block — Mechanical control-block installation reference — Mechanical control-block installation reference

Confirm Before Order

Confirm the table’s “head” dimension and mounting dimensions before manufacture.
Confirm required cable travel, return force and compatible mechanical valve.

Engineering Note

The same source family photograph illustrates multiple handle quantities; the supplied configuration is defined by the handle count and installation dimension.

WhatsApp enquiry Email enquiry

SIMEI FT-MC-260

5-handle mechanical control block

Remote mechanical control of tanker valves, with one control handle for each mechanical valve.

Technical details

Main features

Can connect to a remote mechanical handle for emergency operation.
The handle locks automatically in its operating position.
A fusible element returns open handles to the closed position above 75 °C.
Handle quantity is selected to suit the application.

Available Configurations

Source table offers 1–8 handles with installation L = 112 / 144 / 176 / 208 / 240 / 272 / 304 / 336 mm respectively.

Technical & Ordering Data

Number of handles	5
Installation size L	240 mm
Head dimension in table	75 mm
Side drawing mounting spacing	180 mm
Side drawing height reference	90 mm
Fusible closing temperature	Above 75 °C
Body / cable material	Confirm before quotation

5-handle mechanical control block — Illustrated mechanical control-block variants — Illustrated mechanical control-block variants

5-handle mechanical control block — Fusible return mechanism detail — Fusible return mechanism detail

Dimensions & Construction (1)

Drawings are selection references. Confirm dimensions, tolerances and interfaces against the approved drawing before manufacture.

5-handle mechanical control block — Mechanical control-block installation reference — Mechanical control-block installation reference

Confirm Before Order

Confirm the table’s “head” dimension and mounting dimensions before manufacture.
Confirm required cable travel, return force and compatible mechanical valve.

Engineering Note

The same source family photograph illustrates multiple handle quantities; the supplied configuration is defined by the handle count and installation dimension.

WhatsApp enquiry Email enquiry

SIMEI FT-MC-270

6-handle mechanical control block

Remote mechanical control of tanker valves, with one control handle for each mechanical valve.

Technical details

Main features

Can connect to a remote mechanical handle for emergency operation.
The handle locks automatically in its operating position.
A fusible element returns open handles to the closed position above 75 °C.
Handle quantity is selected to suit the application.

Available Configurations

Source table offers 1–8 handles with installation L = 112 / 144 / 176 / 208 / 240 / 272 / 304 / 336 mm respectively.

Technical & Ordering Data

Number of handles	6
Installation size L	272 mm
Head dimension in table	75 mm
Side drawing mounting spacing	180 mm
Side drawing height reference	90 mm
Fusible closing temperature	Above 75 °C
Body / cable material	Confirm before quotation

6-handle mechanical control block — Illustrated mechanical control-block variants — Illustrated mechanical control-block variants

6-handle mechanical control block — Fusible return mechanism detail — Fusible return mechanism detail

Dimensions & Construction (1)

Drawings are selection references. Confirm dimensions, tolerances and interfaces against the approved drawing before manufacture.

6-handle mechanical control block — Mechanical control-block installation reference — Mechanical control-block installation reference

Confirm Before Order

Confirm the table’s “head” dimension and mounting dimensions before manufacture.
Confirm required cable travel, return force and compatible mechanical valve.

Engineering Note

The same source family photograph illustrates multiple handle quantities; the supplied configuration is defined by the handle count and installation dimension.

WhatsApp enquiry Email enquiry

SIMEI FT-MC-280

7-handle mechanical control block

Remote mechanical control of tanker valves, with one control handle for each mechanical valve.

Technical details

Main features

Can connect to a remote mechanical handle for emergency operation.
The handle locks automatically in its operating position.
A fusible element returns open handles to the closed position above 75 °C.
Handle quantity is selected to suit the application.

Available Configurations

Source table offers 1–8 handles with installation L = 112 / 144 / 176 / 208 / 240 / 272 / 304 / 336 mm respectively.

Technical & Ordering Data

Number of handles	7
Installation size L	304 mm
Head dimension in table	75 mm
Side drawing mounting spacing	180 mm
Side drawing height reference	90 mm
Fusible closing temperature	Above 75 °C
Body / cable material	Confirm before quotation

7-handle mechanical control block — Illustrated mechanical control-block variants — Illustrated mechanical control-block variants

7-handle mechanical control block — Fusible return mechanism detail — Fusible return mechanism detail

Dimensions & Construction (1)

Drawings are selection references. Confirm dimensions, tolerances and interfaces against the approved drawing before manufacture.

7-handle mechanical control block — Mechanical control-block installation reference — Mechanical control-block installation reference

Confirm Before Order

Confirm the table’s “head” dimension and mounting dimensions before manufacture.
Confirm required cable travel, return force and compatible mechanical valve.

Engineering Note

The same source family photograph illustrates multiple handle quantities; the supplied configuration is defined by the handle count and installation dimension.

WhatsApp enquiry Email enquiry

SIMEI FT-MC-290

8-handle mechanical control block

Remote mechanical control of tanker valves, with one control handle for each mechanical valve.

Technical details

Main features

Can connect to a remote mechanical handle for emergency operation.
The handle locks automatically in its operating position.
A fusible element returns open handles to the closed position above 75 °C.
Handle quantity is selected to suit the application.

Available Configurations

Source table offers 1–8 handles with installation L = 112 / 144 / 176 / 208 / 240 / 272 / 304 / 336 mm respectively.

Technical & Ordering Data

Number of handles	8
Installation size L	336 mm
Head dimension in table	75 mm
Side drawing mounting spacing	180 mm
Side drawing height reference	90 mm
Fusible closing temperature	Above 75 °C
Body / cable material	Confirm before quotation

8-handle mechanical control block — Illustrated mechanical control-block variants — Illustrated mechanical control-block variants

8-handle mechanical control block — Fusible return mechanism detail — Fusible return mechanism detail

Dimensions & Construction (1)

Drawings are selection references. Confirm dimensions, tolerances and interfaces against the approved drawing before manufacture.

8-handle mechanical control block — Mechanical control-block installation reference — Mechanical control-block installation reference

Confirm Before Order

Confirm the table’s “head” dimension and mounting dimensions before manufacture.
Confirm required cable travel, return force and compatible mechanical valve.

Engineering Note

The same source family photograph illustrates multiple handle quantities; the supplied configuration is defined by the handle count and installation dimension.

WhatsApp enquiry Email enquiry

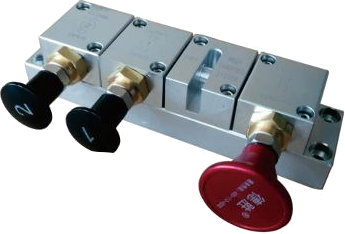

SIMEI FT-PC-100

Multi-way pneumatic control block

Central pneumatic control for tanker bottom loading, operating vapour vents, coaming vents and pneumatic emergency shut-off valves.

Technical details

Main features

One main valve with subsidiary valves selected for the number of compartments.
Controls several valves from a central position.
Remote emergency operation shuts off the connected valves.
Aluminium surfaces have an electromagnetic polishing treatment.

Available Configurations

Select 1–7 ways to suit the tank compartment arrangement.
The illustrated connection functions are emergency-close air, air inlet, vapour vent, first-compartment bottom valve and second-compartment bottom valve.

Technical & Ordering Data

Air supply / bleed pressure	0.4–0.8 MPa
Air hose diameter	6 mm
Body material	Aluminium alloy
Medium	Compressed air
Temperature range	−20 to +50 °C
Available ways	1 / 2 / 3 / 4 / 5 / 6 / 7

Multi-way pneumatic control block — Representative control-face configuration — Representative control-face configuration

Confirm Before Order

Confirm the circuit, required way count, valve sequence and air port connection before quotation.

Engineering Note

Two original configurations are illustrated; the main image is a representative assembly and does not establish the supplied way count.

WhatsApp enquiry Email enquiry

SIMEI FT-PC-110

Pneumatic emergency stop button

Remote emergency stop connected to the outlet of the pneumatic control block; pressing the button stops the control block during tanker loading.

Technical details

Main features

Normally mounted at the tanker rear or away from the loading position for accessible emergency operation.

Technical & Ordering Data

Operation	Push to stop the pneumatic control block
Air ports in drawing	Inlet, outlet and exhaust; 3 × G1/4
Mounting holes in drawing	2 × Ø6 mm; 25 mm centres
Body material	Confirm before quotation
Air pressure / temperature	Confirm before quotation

Dimensions & Construction (1)

Drawings are selection references. Confirm dimensions, tolerances and interfaces against the approved drawing before manufacture.

Pneumatic emergency stop button — Pneumatic ports and mounting-hole reference — Pneumatic ports and mounting-hole reference

Confirm Before Order

Confirm the emergency circuit response and compatible control block.

Engineering Note

Confirm mating details and application suitability before ordering.

WhatsApp enquiry Email enquiry

SIMEI FT-PC-120

Two-way push-pull pneumatic valve

Push-pull control for opening or closing simple pneumatic pipework.

Technical details

Main features

Two-way structure performs air inlet, outlet and exhaust duties.

Technical & Ordering Data

Operation	Manual push-pull
Illustrated handle	Red ball knob
Port thread / pressure / temperature	Confirm before quotation
Body material	Confirm before quotation

Confirm Before Order

Confirm the pneumatic circuit and port allocation.

Engineering Note

Confirm mating details and application suitability before ordering.

WhatsApp enquiry Email enquiry

SIMEI FT-PC-130

Two-way push-pull pneumatic valve

Push-pull control for opening or closing simple pneumatic pipework.

Technical details

Main features

Two-way structure performs air inlet, outlet and exhaust duties.

Technical & Ordering Data

Operation	Manual push-pull
Illustrated handle	Black push-pull knob
Port thread / pressure / temperature	Confirm before quotation
Body material	Confirm before quotation

Confirm Before Order

Confirm the pneumatic circuit and port allocation.

Engineering Note

Confirm mating details and application suitability before ordering.

WhatsApp enquiry Email enquiry

SIMEI ENERGY

Selection and ordering

Send the SIMEI code, quantity, transported medium, operating conditions and mating drawing. Confirm materials, seals, interfaces and operating requirements before ordering.

WhatsApp enquiry Email enquiry

Related engineering

Tank terminal construction Fuel station equipment
