Product catalogue / 07
Tanker Operating & Installation Accessories
Measurement, identification and installation accessories. Check the actual mating component, dimensions and operator access.
28 traceable product codesProduct models and configurations
SIMEI FT-AC-100Static-conductive tanker grounding belt
Conductive rubber belt mounted at the tanker rear to maintain contact between the vehicle and ground.
Technical details
Static-conductive tanker grounding belt
Conductive rubber belt mounted at the tanker rear to maintain contact between the vehicle and ground.
Technical detailsMain features
- Adjustable length helps maintain contact with the road surface.
- Intended to discharge static electricity from the vehicle.
Technical & Ordering Data
| Material | Electrostatically conductive rubber |
|---|---|
| Length | Adjustable; nominal length not stated |
Confirm Before Order
- Confirm conductivity/resistance requirements and installation position.
Engineering Note
This belt is a static-control component; confirm suitability for the full vehicle grounding system.
SIMEI FT-AC-110Quick-connect dip tube
Tanker-top access point for inserting a measuring instrument to check the oil level.
Technical details
Quick-connect dip tube
Tanker-top access point for inserting a measuring instrument to check the oil level.
Technical detailsMain features
- Quick connection supports convenient operation.
- Sealing design helps prevent liquid overflow at the measuring point.
Technical & Ordering Data
| Body material | Aluminium alloy |
|---|---|
| Temperature range | −20 to +70 °C |
| Mounting | Manhole cover or tanker top |
| Nominal connection / seal material | Confirm before quotation |
| Drawing references | Ø57 mm and 82 mm are legible; other small dimensions require verification |
Dimensions & Construction (1)
Drawings are selection references. Confirm dimensions, tolerances and interfaces against the approved drawing before manufacture.
Confirm Before Order
- Confirm mating connection, sealing material and measuring-device clearance.
Engineering Note
Confirm mating details and application suitability before ordering.
SIMEI FT-AC-120Long quick-connect dip tube
Tanker-top access point for inserting a measuring instrument to check the oil level.
Technical details
Long quick-connect dip tube
Tanker-top access point for inserting a measuring instrument to check the oil level.
Technical detailsMain features
- Quick connection supports convenient operation.
- Sealing design helps prevent liquid overflow at the measuring point.
Technical & Ordering Data
| Body material | Aluminium alloy |
|---|---|
| Temperature range | −20 to +70 °C |
| Mounting | Manhole cover or tanker top |
| Nominal connection / seal material | Confirm before quotation |
| Drawing diameter | Ø50 mm |
| Drawing height | 450 mm; verify against the manufacturing drawing |
| Intermediate dimension | Small dimension callout retained in the drawing; confirm before quotation |
Dimensions & Construction (1)
Drawings are selection references. Confirm dimensions, tolerances and interfaces against the approved drawing before manufacture.
Confirm Before Order
- Confirm mating connection, sealing material and measuring-device clearance.
Engineering Note
Confirm mating details and application suitability before ordering.
SIMEI FT-AC-130Rotary-style dip tube
Tanker-top access point for inserting a measuring instrument to check the oil level.
Technical details
Rotary-style dip tube
Tanker-top access point for inserting a measuring instrument to check the oil level.
Technical detailsMain features
- Quick connection supports convenient operation.
- Sealing design helps prevent liquid overflow at the measuring point.
Technical & Ordering Data
| Body material | Aluminium alloy |
|---|---|
| Temperature range | −20 to +70 °C |
| Mounting | Manhole cover or tanker top |
| Nominal connection / seal material | Confirm before quotation |
Confirm Before Order
- Confirm mating connection, sealing material and measuring-device clearance.
Engineering Note
Confirm mating details and application suitability before ordering.
SIMEI FT-AC-140Foot-step dip tube
Tanker-top access point for inserting a measuring instrument to check the oil level.
Technical details
Foot-step dip tube
Tanker-top access point for inserting a measuring instrument to check the oil level.
Technical detailsMain features
- Quick connection supports convenient operation.
- Sealing design helps prevent liquid overflow at the measuring point.
Technical & Ordering Data
| Body material | Aluminium alloy |
|---|---|
| Temperature range | −20 to +70 °C |
| Mounting | Manhole cover or tanker top |
| Nominal connection / seal material | Confirm before quotation |
Confirm Before Order
- Confirm mating connection, sealing material and measuring-device clearance.
Engineering Note
Confirm mating details and application suitability before ordering.
SIMEI FT-AC-150Tanker measurement rule
Rigid rule for tanker liquid-level measurement.
Technical details
Tanker measurement rule
Rigid rule for tanker liquid-level measurement.
Technical detailsMain features
Technical & Ordering Data
| Length | 1800 mm |
|---|---|
| Width | 25 mm |
| Thickness | 5 mm |
| Material / graduation | Confirm before quotation |
Confirm Before Order
- Confirm graduation units and measurement method.
Engineering Note
Confirm mating details and application suitability before ordering.
SIMEI FT-AC-160Tanker measuring tape
Reel-type tape for tanker liquid-level measurement.
Technical details
Tanker measuring tape
Reel-type tape for tanker liquid-level measurement.
Technical detailsMain features
Technical & Ordering Data
| Length | 5000 mm |
|---|---|
| Material / graduation | Confirm before quotation |
Confirm Before Order
- Confirm tape width, graduation, weight and wetted-material compatibility.
Engineering Note
Source placement under “Measurement Rule” and the reel photograph identify this as a measuring tape.
SIMEI FT-AC-170Tanker guard-bar system
Folding aluminium guard bar mounted on top of a tanker to support operator safety when raised.
Technical details
Tanker guard-bar system
Folding aluminium guard bar mounted on top of a tanker to support operator safety when raised.
Technical detailsMain features
- Gas springs support raising and extending the guard bar.
- End plugs help exclude rain and dust.
- Two sections connect through plastic link blocks.
- Two cables reduce clearances in the raised system.
- Width and length can be made to the required dimensions.
Available Configurations
- Gas spring holder
- End plug
- Guard bar holder
- Guard bar cable
- Guard bar link block
- Gas spring
Technical & Ordering Data
| Main material | Aluminium alloy |
|---|---|
| Link block | Plastic |
| Width / length | Made to order |
| Drawing reference | Overall and linkage reference supplied; dimension labels require verification |
Dimensions & Construction (1)
Drawings are selection references. Confirm dimensions, tolerances and interfaces against the approved drawing before manufacture.
Confirm Before Order
- Confirm mounting, required height and width, load requirements, cable route and gas-spring specification.
Engineering Note
Confirm mating details and application suitability before ordering.
SIMEI FT-AC-180Fuel grade indicator
Manually selected fuel identification display installed at the tanker loading position.
Technical details
Fuel grade indicator
Manually selected fuel identification display installed at the tanker loading position.
Technical detailsMain features
- An internal roller carries eight labels to identify the compartment contents.
Available Configurations
- Eight colour bands: blue, white, black, grey, yellow, red, green and dark blue.
- The alternate-language sample column specifies kerosene, empty, No. 0 diesel, No. −10 diesel, and 90 / 92 / 95 / 98-grade unleaded gasoline; these differ from several English sample labels.
Technical & Ordering Data
| Body material | Nylon (family table; confirm variant allocation) |
|---|---|
| Selectable labels | 8, selected by rotating the internal roller |
| Label text | Jet A1, Empty, Fuel Oil, Kerosene, Diesel, Gasoline, Unleaded, Super Diesel |
| Body diameter in drawing | Ø60 mm |
| Overall length in drawing | 190 mm |
| Mounting centres in drawing | 50 mm |
Dimensions & Construction (1)
Drawings are selection references. Confirm dimensions, tolerances and interfaces against the approved drawing before manufacture.
Confirm Before Order
- Confirm label wording, colour convention and language before quotation.
- The English and Chinese sample labels are not direct equivalents; agree the required fuel labels.
Engineering Note
Material rows are not explicitly linked to model captions; the nylon/aluminium allocation follows the pictured forms and requires confirmation.

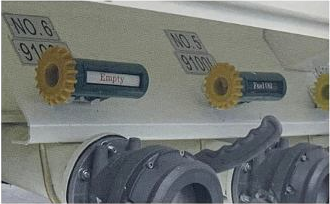

SIMEI FT-AC-190Fuel grade indicator
Manually selected fuel identification display installed at the tanker loading position.
Technical details
Fuel grade indicator
Manually selected fuel identification display installed at the tanker loading position.
Technical detailsMain features
- An internal roller carries eight labels to identify the compartment contents.
Available Configurations
- Eight colour bands: blue, white, black, grey, yellow, red, green and dark blue.
- The alternate-language sample column specifies kerosene, empty, No. 0 diesel, No. −10 diesel, and 90 / 92 / 95 / 98-grade unleaded gasoline; these differ from several English sample labels.
Technical & Ordering Data
| Body material | Aluminium alloy (family table; confirm variant allocation) |
|---|---|
| Selectable labels | 8, selected by rotating the internal roller |
| Label text | Jet A1, Empty, Fuel Oil, Kerosene, Diesel, Gasoline, Unleaded, Super Diesel |
| Body diameter in drawing | Ø60 mm |
| Overall length in drawing | 205.5 mm |
| Mounting centres in drawing | 57.4 mm |
| Mounting holes | 2 × Ø14 mm |
Dimensions & Construction (1)
Drawings are selection references. Confirm dimensions, tolerances and interfaces against the approved drawing before manufacture.
Confirm Before Order
- Confirm label wording, colour convention and language before quotation.
- The English and Chinese sample labels are not direct equivalents; agree the required fuel labels.
Engineering Note
Material rows are not explicitly linked to model captions; the nylon/aluminium allocation follows the pictured forms and requires confirmation.
SIMEI FT-AC-200150 mm oil-pipe cap
Cap system fitted to the two ends of a tanker hose box to retain the hose and drain excess oil or water.
Technical details
150 mm oil-pipe cap
Cap system fitted to the two ends of a tanker hose box to retain the hose and drain excess oil or water.
Technical detailsMain features
- Locking arrangement secures the hose storage compartment.
- Drain provision allows residual oil and water to escape.
Available Configurations
- Hinged locking cap assembly
- Plain cap form
Technical & Ordering Data
| Nominal size | 150 mm |
|---|---|
| Material | Aluminium alloy |
| Hinged-form inner / outer diameters | Ø152.5 / Ø159 mm |
| Hinged-form overall height | 72 mm |
| Hinged-form lower reference | 23 mm |
| Plain-cap diameter | Ø152.5 mm |
| Plain-cap depth / thickness | 28 / 3 mm |
| Plain-cap fixing | 3 × M10 |
Dimensions & Construction (2)
Drawings are selection references. Confirm dimensions, tolerances and interfaces against the approved drawing before manufacture.
Confirm Before Order
- Confirm the required form, mating hose-box tube, locking arrangement and drainage position.
Engineering Note
The source uses the same source model for the two pictured forms at each nominal size.
SIMEI FT-AC-210160 mm oil-pipe cap
Cap system fitted to the two ends of a tanker hose box to retain the hose and drain excess oil or water.
Technical details
160 mm oil-pipe cap
Cap system fitted to the two ends of a tanker hose box to retain the hose and drain excess oil or water.
Technical detailsMain features
- Locking arrangement secures the hose storage compartment.
- Drain provision allows residual oil and water to escape.
Available Configurations
- Hinged locking cap assembly
- Plain cap form
Technical & Ordering Data
| Nominal size | 160 mm |
|---|---|
| Material | Aluminium alloy |
| Hinged-form inner / outer diameters | Ø160.5 / Ø167 mm |
| Hinged-form overall height | 72 mm |
| Hinged-form lower reference | 23 mm |
| Plain-cap diameter | Ø160.5 mm |
| Plain-cap depth / thickness | 28 / 3 mm |
| Plain-cap fixing | 3 × M10 |
Dimensions & Construction (2)
Drawings are selection references. Confirm dimensions, tolerances and interfaces against the approved drawing before manufacture.
Confirm Before Order
- Confirm the required form, mating hose-box tube, locking arrangement and drainage position.
Engineering Note
The source uses the same source model for the two pictured forms at each nominal size.
SIMEI FT-AC-220180 mm oil-pipe cap
Cap system fitted to the two ends of a tanker hose box to retain the hose and drain excess oil or water.
Technical details
180 mm oil-pipe cap
Cap system fitted to the two ends of a tanker hose box to retain the hose and drain excess oil or water.
Technical detailsMain features
- Locking arrangement secures the hose storage compartment.
- Drain provision allows residual oil and water to escape.
Available Configurations
- Hinged locking cap assembly
- Plain cap form
Technical & Ordering Data
| Nominal size | 180 mm |
|---|---|
| Material | Aluminium alloy |
| Hinged-form inner / outer diameters | Ø180.5 / Ø187 mm |
| Hinged-form overall height | 72 mm |
| Hinged-form lower reference | 23 mm |
| Plain-cap diameter | Ø180.5 mm |
| Plain-cap depth / thickness | 28 / 3 mm |
| Plain-cap fixing | 3 × M10 |
Dimensions & Construction (2)
Drawings are selection references. Confirm dimensions, tolerances and interfaces against the approved drawing before manufacture.
Confirm Before Order
- Confirm the required form, mating hose-box tube, locking arrangement and drainage position.
Engineering Note
The source uses the same source model for the two pictured forms at each nominal size.
SIMEI FT-AC-230Raised-neck flange, red finish
Flange accessory for matching tanker fittings and pipework.
Technical details
Raised-neck flange, red finish
Flange accessory for matching tanker fittings and pipework.
Technical detailsMain features
Technical & Ordering Data
| Form | Raised-neck flange, red finish |
|---|---|
| Nominal size / bore / bolt pattern | Confirm before quotation |
| Material / surface treatment | Confirm before quotation |
| Pressure rating | Confirm before quotation |
Confirm Before Order
- Confirm all mating dimensions, material grade, gasket and fastening requirements.
Engineering Note
The source provides an individual photograph and model caption only; no component-specific size or material table is given.
SIMEI FT-AC-240Drilled circular flange ring
Flange accessory for matching tanker fittings and pipework.
Technical details
Drilled circular flange ring
Flange accessory for matching tanker fittings and pipework.
Technical detailsMain features
Technical & Ordering Data
| Form | Drilled circular flange ring |
|---|---|
| Nominal size / bore / bolt pattern | Confirm before quotation |
| Material / surface treatment | Confirm before quotation |
| Pressure rating | Confirm before quotation |
Confirm Before Order
- Confirm all mating dimensions, material grade, gasket and fastening requirements.
Engineering Note
The source provides an individual photograph and model caption only; no component-specific size or material table is given.
SIMEI FT-AC-250Raised-neck drilled flange
Flange accessory for matching tanker fittings and pipework.
Technical details
Raised-neck drilled flange
Flange accessory for matching tanker fittings and pipework.
Technical detailsMain features
Technical & Ordering Data
| Form | Raised-neck drilled flange |
|---|---|
| Nominal size / bore / bolt pattern | Confirm before quotation |
| Material / surface treatment | Confirm before quotation |
| Pressure rating | Confirm before quotation |
Confirm Before Order
- Confirm all mating dimensions, material grade, gasket and fastening requirements.
Engineering Note
The source provides an individual photograph and model caption only; no component-specific size or material table is given.
SIMEI FT-AC-260Plain raised-neck flange ring
Flange accessory for matching tanker fittings and pipework.
Technical details
Plain raised-neck flange ring
Flange accessory for matching tanker fittings and pipework.
Technical detailsMain features
Technical & Ordering Data
| Form | Plain raised-neck flange ring |
|---|---|
| Nominal size / bore / bolt pattern | Confirm before quotation |
| Material / surface treatment | Confirm before quotation |
| Pressure rating | Confirm before quotation |
Confirm Before Order
- Confirm all mating dimensions, material grade, gasket and fastening requirements.
Engineering Note
The source provides an individual photograph and model caption only; no component-specific size or material table is given.
SIMEI FT-AC-270Machined circular flange pair
Flange accessory for matching tanker fittings and pipework.
Technical details
Machined circular flange pair
Flange accessory for matching tanker fittings and pipework.
Technical detailsMain features
Technical & Ordering Data
| Form | Machined circular flange pair |
|---|---|
| Nominal size / bore / bolt pattern | Confirm before quotation |
| Material / surface treatment | Confirm before quotation |
| Pressure rating | Confirm before quotation |
Confirm Before Order
- Confirm all mating dimensions, material grade, gasket and fastening requirements.
Engineering Note
The source provides an individual photograph and model caption only; no component-specific size or material table is given.
SIMEI FT-AC-280Drilled circular flange pair
Flange accessory for matching tanker fittings and pipework.
Technical details
Drilled circular flange pair
Flange accessory for matching tanker fittings and pipework.
Technical detailsMain features
Technical & Ordering Data
| Form | Drilled circular flange pair |
|---|---|
| Nominal size / bore / bolt pattern | Confirm before quotation |
| Material / surface treatment | Confirm before quotation |
| Pressure rating | Confirm before quotation |
Confirm Before Order
- Confirm all mating dimensions, material grade, gasket and fastening requirements.
Engineering Note
The source provides an individual photograph and model caption only; no component-specific size or material table is given.
SIMEI FT-AC-290Square flange pair
Flange accessory for matching tanker fittings and pipework.
Technical details
Square flange pair
Flange accessory for matching tanker fittings and pipework.
Technical detailsMain features
Technical & Ordering Data
| Form | Square flange pair |
|---|---|
| Nominal size / bore / bolt pattern | Confirm before quotation |
| Material / surface treatment | Confirm before quotation |
| Pressure rating | Confirm before quotation |
Confirm Before Order
- Confirm all mating dimensions, material grade, gasket and fastening requirements.
Engineering Note
The source provides an individual photograph and model caption only; no component-specific size or material table is given.
SIMEI FT-AC-300Circular mounting flange
Flange accessory for matching tanker fittings and pipework.
Technical details
Circular mounting flange
Flange accessory for matching tanker fittings and pipework.
Technical detailsMain features
Technical & Ordering Data
| Form | Circular mounting flange |
|---|---|
| Nominal size / bore / bolt pattern | Confirm before quotation |
| Material / surface treatment | Confirm before quotation |
| Pressure rating | Confirm before quotation |
Confirm Before Order
- Confirm all mating dimensions, material grade, gasket and fastening requirements.
Engineering Note
The source provides an individual photograph and model caption only; no component-specific size or material table is given.
SIMEI FT-AC-310Circular flange assembly with projecting fasteners
Flange accessory for matching tanker fittings and pipework.
Technical details
Circular flange assembly with projecting fasteners
Flange accessory for matching tanker fittings and pipework.
Technical detailsMain features
Technical & Ordering Data
| Form | Circular flange assembly with projecting fasteners |
|---|---|
| Nominal size / bore / bolt pattern | Confirm before quotation |
| Material / surface treatment | Confirm before quotation |
| Pressure rating | Confirm before quotation |
Confirm Before Order
- Confirm all mating dimensions, material grade, gasket and fastening requirements.
Engineering Note
The source provides an individual photograph and model caption only; no component-specific size or material table is given.
SIMEI FT-AC-320Gas spring holder
Mounting holder for the tanker guard-bar gas spring.
Technical details
Gas spring holder
Mounting holder for the tanker guard-bar gas spring.
Technical detailsMain features
Technical & Ordering Data
| Application | Tanker guard-bar system FT-AC-170 |
|---|---|
| Material | Confirm before quotation |
| Dimensions / mounting | Confirm before quotation |
Confirm Before Order
- Confirm dimensions and compatibility with the guard-bar assembly.
Engineering Note
Individual component is identified in the source installation-detail photograph; adjacent attachment geometry may be visible.
SIMEI FT-AC-330Guard-bar end plug
End closure for the tanker guard bar, helping to exclude rain and dust.
Technical details
Guard-bar end plug
End closure for the tanker guard bar, helping to exclude rain and dust.
Technical detailsMain features
Technical & Ordering Data
| Application | Tanker guard-bar system FT-AC-170 |
|---|---|
| Material | Confirm before quotation |
| Dimensions / mounting | Confirm before quotation |
Confirm Before Order
- Confirm dimensions and compatibility with the guard-bar assembly.
Engineering Note
Individual component is identified in the source installation-detail photograph; adjacent attachment geometry may be visible.
SIMEI FT-AC-340Guard-bar holder
Mounting holder for the tanker guard-bar assembly.
Technical details
Guard-bar holder
Mounting holder for the tanker guard-bar assembly.
Technical detailsMain features
Technical & Ordering Data
| Application | Tanker guard-bar system FT-AC-170 |
|---|---|
| Material | Confirm before quotation |
| Dimensions / mounting | Confirm before quotation |
Confirm Before Order
- Confirm dimensions and compatibility with the guard-bar assembly.
Engineering Note
Individual component is identified in the source installation-detail photograph; adjacent attachment geometry may be visible.
SIMEI FT-AC-350Guard-bar cable
Cable for the tanker guard bar; the assembly uses two cables to reduce clearances.
Technical details
Guard-bar cable
Cable for the tanker guard bar; the assembly uses two cables to reduce clearances.
Technical detailsMain features
Technical & Ordering Data
| Application | Tanker guard-bar system FT-AC-170 |
|---|---|
| Material | Confirm before quotation |
| Dimensions / mounting | Confirm before quotation |
Confirm Before Order
- Confirm dimensions and compatibility with the guard-bar assembly.
Engineering Note
Individual component is identified in the source installation-detail photograph; adjacent attachment geometry may be visible.
SIMEI FT-AC-360Guard-bar link block
Plastic link block joining two sections of the tanker guard bar.
Technical details
Guard-bar link block
Plastic link block joining two sections of the tanker guard bar.
Technical detailsMain features
Technical & Ordering Data
| Application | Tanker guard-bar system FT-AC-170 |
|---|---|
| Material | Plastic |
| Dimensions / mounting | Confirm before quotation |
Confirm Before Order
- Confirm dimensions and compatibility with the guard-bar assembly.
Engineering Note
Individual component is identified in the source installation-detail photograph; adjacent attachment geometry may be visible.
SIMEI FT-AC-370Guard-bar gas spring
Gas spring supporting the raising and extension of the tanker guard bar.
Technical details
Guard-bar gas spring
Gas spring supporting the raising and extension of the tanker guard bar.
Technical detailsMain features
Technical & Ordering Data
| Application | Tanker guard-bar system FT-AC-170 |
|---|---|
| Material | Confirm before quotation |
| Dimensions / mounting | Confirm before quotation |
Confirm Before Order
- Confirm dimensions and compatibility with the guard-bar assembly.
- Confirm extension, force, stroke and end fittings.
Engineering Note
Individual component is identified in the source installation-detail photograph; adjacent attachment geometry may be visible.
SIMEI ENERGY
Selection and ordering
Send the SIMEI code, quantity, transported medium, operating conditions and mating drawing. Confirm materials, seals, interfaces and operating requirements before ordering.
